氣動隔膜泵膜片密封件設計與應用是隔膜泵性能和壽命的關鍵因素之一。桂祺密封件告訴您本文將從膜片的材料選擇、設計要點、更換維護等方面探討氣動隔膜泵膜片密封件設計與應用。

一、氣動隔膜泵膜片材料選擇:
氣動隔膜泵膜片密封件通常由橡膠、聚四氟乙烯、聚酯等材料制成。這些材料具有一定的彈性和耐腐蝕性能，能夠承受高壓和高溫。不同的材料具有不同的性能和適用范圍，需要根據具體的工作條件和介質性質進行選擇。

1、橡膠氣動隔膜泵膜片；
橡膠膜片是隔膜泵常用的膜片材料之一，具有良好的耐腐蝕性能和耐磨性能，適用于輸送中等濃度和低濃度的酸堿液、磨蝕性介質和食品等。常用的橡膠材料有氯丁橡膠、丁基橡膠、氟橡膠等。

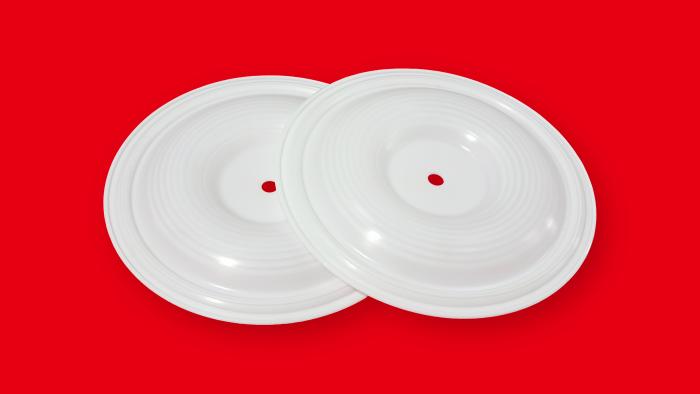

2、聚四氟乙烯氣動隔膜泵膜片；
聚四氟乙烯膜片是一種耐腐蝕性能極好的材料，能夠承受極端的高溫和強酸強堿介質，適用于輸送強腐蝕性介質和高溫介質。但由于其彈性較差，容易因受力而形變，不適用于輸送顆粒較大的介質。此外，聚四氟乙烯膜片的價格較高，需要根據具體的工作條件和介質性質進行選擇。

3、聚酯氣動隔膜泵膜片；
聚酯膜片是一種價格較低、強度較高的材料，適用于輸送中等濃度的酸堿液、食品等。但聚酯膜片的耐腐蝕性能較差，不適用于輸送強酸強堿介質和高溫介質。



二、氣動隔膜泵膜片設計要點：
氣動隔膜泵膜片密封件設計對泵的性能和壽命有著至關重要的影響。從膜片的厚度、形狀、張力等方面進行設計和優化，能夠提高隔膜泵的性能和壽命。

1、氣動隔膜泵膜片厚度;
膜片的厚度直接影響到膜片的耐用性。一般而言，膜片越厚，耐用性就越好。但是，過于厚的膜片會影響泵的性能和效率，因此需要根據具體的工作條件和介質性質進行選擇。

2、氣動隔膜泵膜片形狀;
膜片的形狀也會影響到隔膜泵的性能和壽命。在設計膜片時需要考慮到泵的排量和性能要求，選擇合適的形狀和尺寸。一般而言，膜片的形狀應盡量簡單，避免過于復雜的形狀和細節，以免影響膜片的強度和耐用性。

3、氣動隔膜泵膜片張力;
膜片的張力對隔膜泵的性能和壽命也有著重要的影響。膜片的張力越大，泵的排量越大，但也會影響泵的效率和壽命。在設計和安裝膜片時需要注意調整膜片的張力，確保膜片的位置和張力符合要求，避免泄漏和振動。



三、氣動隔膜泵膜片更換維護:
氣動隔膜泵膜片密封件使用壽命是直接影響到隔膜泵的運行時間和工作效率的重要因素之一。因此，在使用隔膜泵時需要定期檢查和更換膜片，以確保泵的性能和壽命。

1、氣動隔膜泵膜片更換周期;
膜片的更換周期需要根據具體的工作條件和介質性質進行確定。一般而言，膜片的使用壽命在6個月至1年左右。如果發現膜片出現裂紋、老化、變形等問題，需要及時更換膜片。

2、氣動隔膜泵膜片更換注意事項——在更換膜片時需要注意以下幾點；

（1）選擇合適的膜片材料和規格；
（2）檢查膜片接口和密封性能；
（3）調整膜片的張力和位置，確保符合要求；
（4）檢查泵的其他部件是否存在損壞或磨損；
（5）根據隔膜泵的使用說明書進行操作。



總之，氣動隔膜泵膜片密封件設計與應用是隔膜泵性能和壽命的關鍵因素之一。正確選擇膜片材料、設計合理的膜片形狀和張力、定期檢查和更換膜片，能夠提高隔膜泵的性能和壽命，保證泵的正常運行。



以下英文版：

The design and application of diaphragm seals in pneumatic diaphragm pumps are one of the key factors affecting the performance and lifespan of diaphragm pumps. Qi Sheng Xincai tells you that this article will explore the design and application of diaphragm seals for pneumatic diaphragm pumps from the aspects of material selection, design points, replacement and maintenance.



• Selection of diaphragm material for pneumatic diaphragm pumps:

The diaphragm seals of pneumatic diaphragm pumps are usually made of materials such as rubber, polytetrafluoroethylene, polyester, etc. These materials have certain elasticity and corrosion resistance, and can withstand high pressure and high temperature. Different materials have different properties and applicability, and selection needs to be based on specific working conditions and medium properties.



1. Rubber pneumatic diaphragm pump diaphragm;

Rubber diaphragm is one of the commonly used diaphragm materials for diaphragm pumps, which has good corrosion resistance and wear resistance. It is suitable for transporting medium and low concentration acid and alkali liquids, corrosive media, and food. Commonly used rubber materials include chloroprene rubber, butyl rubber, fluororubber, etc.



2. PTFE pneumatic diaphragm pump diaphragm;

Polytetrafluoroethylene membrane is a material with excellent corrosion resistance, capable of withstanding extreme high temperatures and strong acidic and alkaline media, suitable for transporting highly corrosive and high-temperature media. However, due to its poor elasticity, it is prone to deformation due to stress and is not suitable for conveying media with larger particles. In addition, the price of polytetrafluoroethylene membranes is relatively high and needs to be selected based on specific working conditions and medium properties.



3. Polyester pneumatic diaphragm pump diaphragm;

Polyester film is a material with lower price and higher strength, suitable for conveying medium concentration acid and alkali liquids, food, etc. However, polyester membranes have poor corrosion resistance and are not suitable for transporting strong acid, alkali, and high-temperature media.



• Key points of diaphragm design for pneumatic diaphragm pumps:

The design of diaphragm seals in pneumatic diaphragm pumps has a crucial impact on the performance and lifespan of the pump. Designing and optimizing the thickness, shape, tension, and other aspects of the diaphragm can improve the performance and lifespan of the diaphragm pump.



1. Diaphragm thickness of pneumatic diaphragm pump;

The thickness of the diaphragm directly affects its durability. Generally speaking, the thicker the diaphragm, the better its durability. However, an excessively thick diaphragm can affect the performance and efficiency of the pump, so it needs to be selected based on specific working conditions and medium properties.



2. Diaphragm shape of pneumatic diaphragm pump;

The shape of the diaphragm also affects the performance and lifespan of the diaphragm pump. When designing the diaphragm, it is necessary to consider the displacement and performance requirements of the pump, and choose the appropriate shape and size. Generally speaking, the shape of the membrane should be as simple as possible to avoid overly complex shapes and details, in order to avoid affecting the strength and durability of the membrane.



3. Pneumatic diaphragm pump diaphragm tension;

The tension of the diaphragm also has an important impact on the performance and lifespan of the diaphragm pump. The greater the tension of the diaphragm, the greater the displacement of the pump, but it also affects the efficiency and lifespan of the pump. When designing and installing the diaphragm, attention should be paid to adjusting the tension of the diaphragm to ensure that the position and tension of the diaphragm meet the requirements, and to avoid leakage and vibration.



• Pneumatic diaphragm pump diaphragm replacement and maintenance:

The service life of diaphragm seals in pneumatic diaphragm pumps is one of the important factors that directly affect the operating time and efficiency of diaphragm pumps. Therefore, when using a diaphragm pump, it is necessary to regularly inspect and replace the diaphragm to ensure the performance and lifespan of the pump.



1. Pneumatic diaphragm pump diaphragm replacement cycle;

The replacement cycle of the diaphragm needs to be determined based on specific working conditions and medium properties. Generally speaking, the service life of the diaphragm is around 6 months to 1 year. If cracks, aging, deformation and other issues are found on the membrane, it is necessary to replace the membrane in a timely manner.



2. Precautions for replacing the diaphragm of pneumatic diaphragm pump - The following points need to be noted when replacing the diaphragm;

(1) Select appropriate diaphragm materials and specifications;

(2) Check the membrane interface and sealing performance;

(3) Adjust the tension and position of the diaphragm to ensure compliance with requirements;

(4) Check other components of the pump for damage or wear;

(5) Operate according to the operating manual of the diaphragm pump.



In summary, the design and application of diaphragm seals in pneumatic diaphragm pumps are one of the key factors affecting the performance and lifespan of diaphragm pumps. Proper selection of membrane materials, reasonable design of membrane shape and tension, regular inspection and replacement of membranes can improve the performance and lifespan of diaphragm pumps, and ensure their normal operation.
